Šifra proizvoda: HDCH8S40440

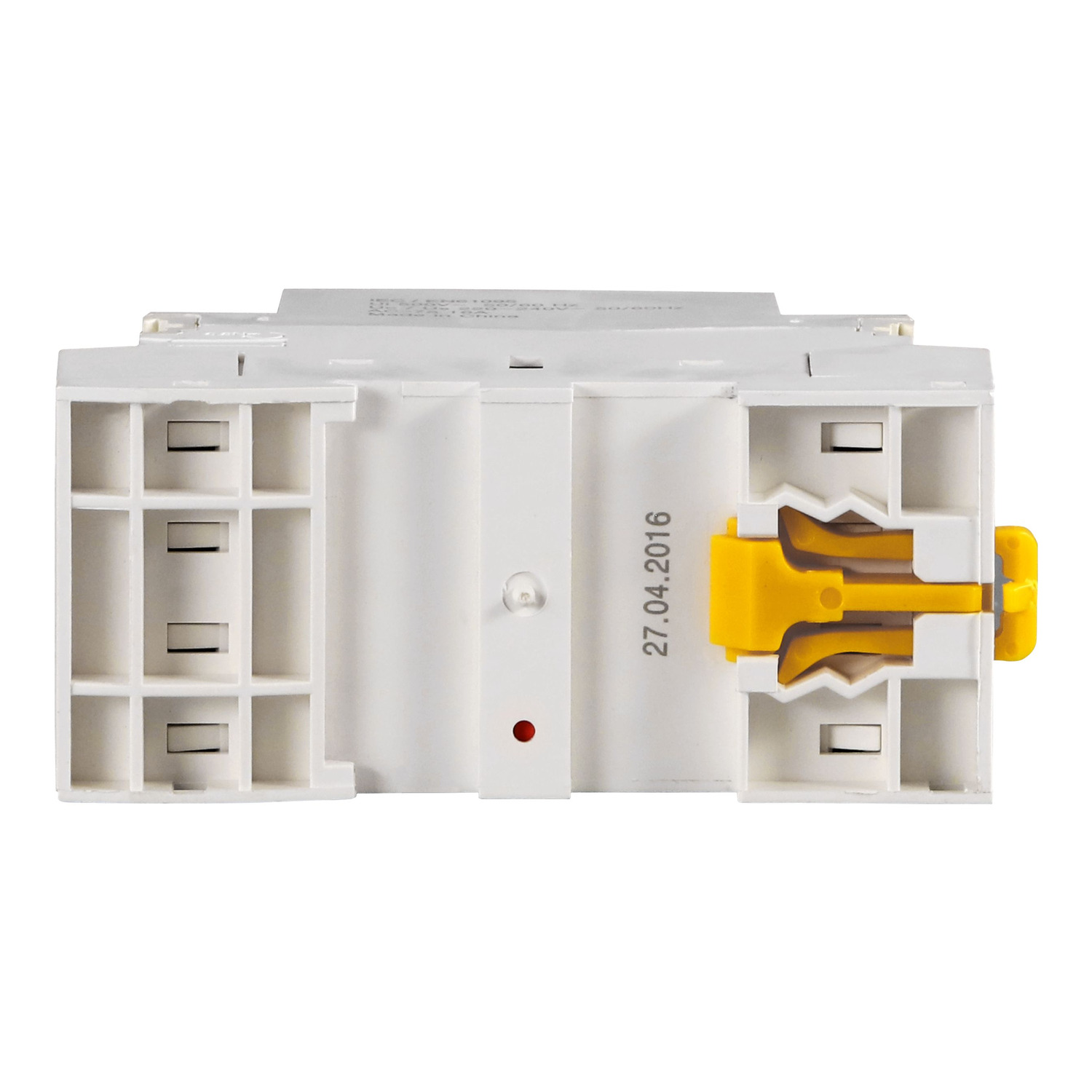

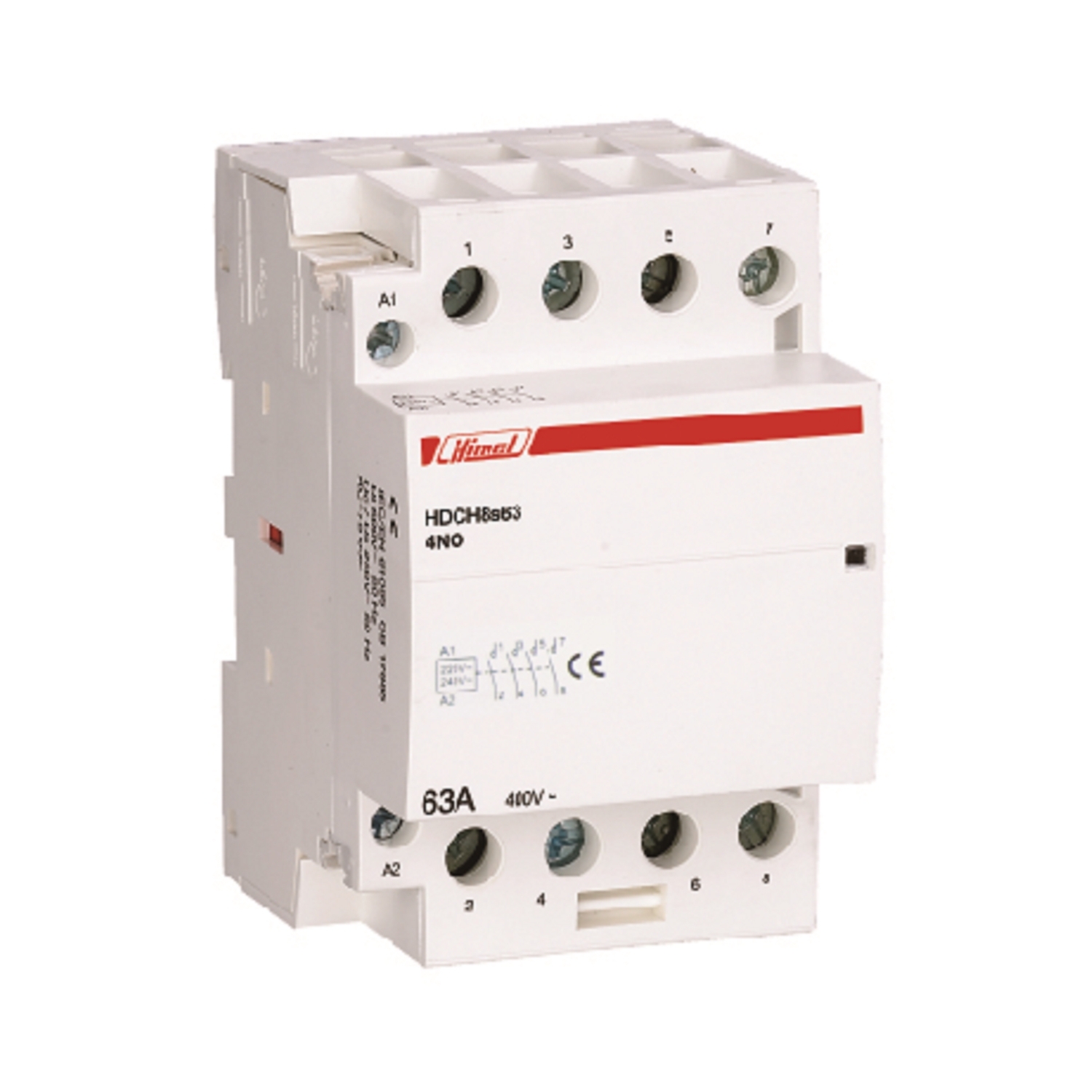

Naziv: Modularni kontaktor 40A 4P 4NO HDCH8S Himel
Range of product:HDCH8s
Product or component type:Modular contactor
Contactor application:Lighting Motor control Heating
Poles description:4P
Pole contact composition:4 NO
[Ie] rated operational current:40 A AC-7A
Utilisation category:AC-7A AC-7B
[Ue] rated operational voltage:250/400 V
Control circuit type:AC at 50/60 Hz
[Uc] control circuit voltage:230 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage:4 kV
[Ith] conventional free air thermal current:63 A
Irms rated making capacity:60 A
Rated breaking capacity:60 A
[Ui] rated insulation voltage:500 V
Electrical durability:100000 cycles
Control type:Remote control
Mounting mode:Clip-on
Mounting support:DIN rail
Maximum operating rate:30 cyc/h
Mechanical durability:1000000 cycles
Standards:IEC 61095
Ambient air temperature for operation:-5…60 °C
Unit Type of Package 1:PCE
Na lageru: 29 kom
Jedinica mere: kom
->
