Šifra proizvoda: HXCMP1307

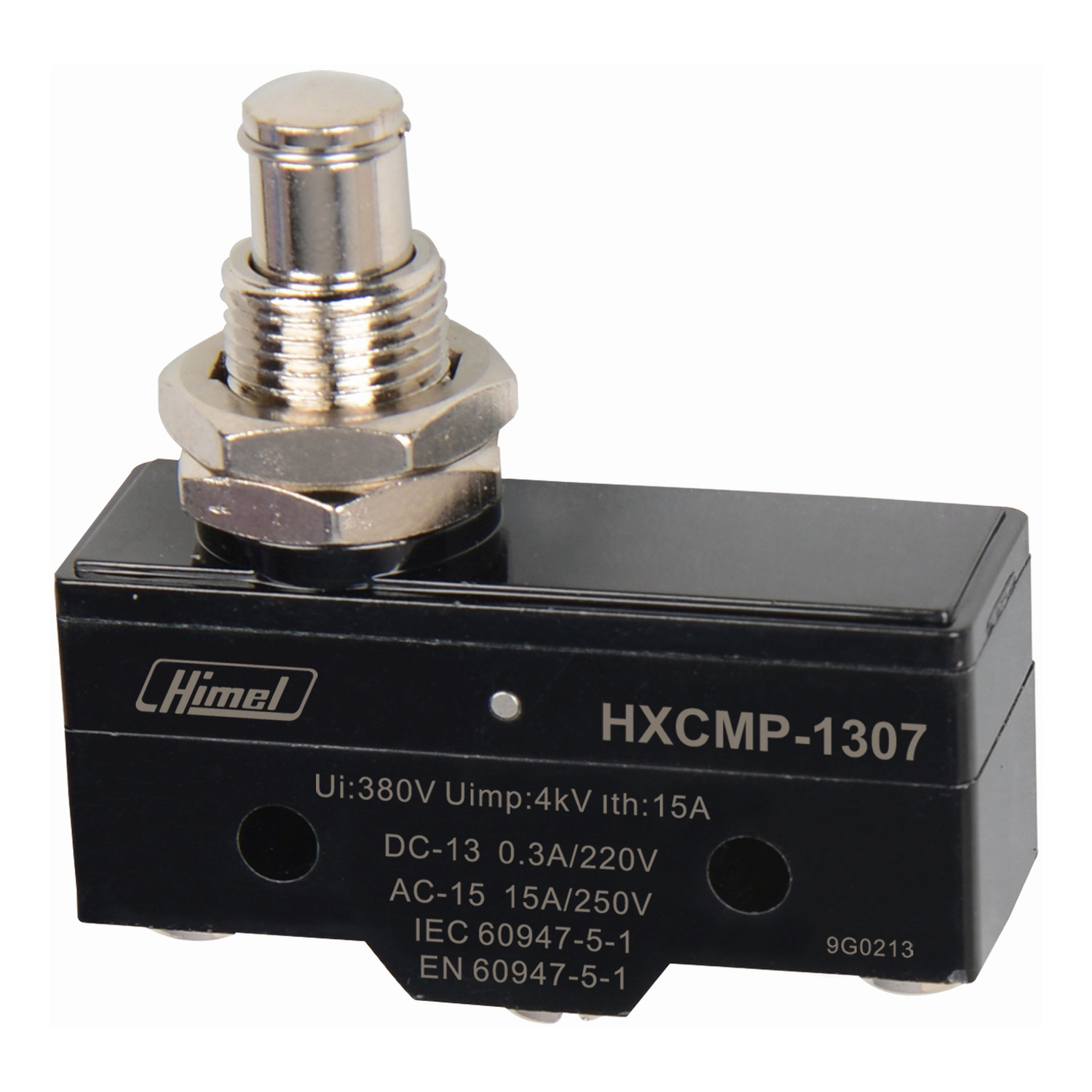

Naziv: Mikro prekidač MP serija klip duži HIMEL
Range of product:HXCMP
Series name:HXC
Product or component type:Microswitch
Body type:Fixed
Body material:Plastic
Head material:Stainless steel
Fixing mode:By the body
Movement of operating head:Linear
Type of operator:Plunger long
Cable entry:3 entries tapped for Pg 13.5 cable gland
cable outer diameter:9…12 mm
Number of poles:3
Contacts type and composition:1 NC + 1 NO
Contact operation:Snap action
Device presentation:Complete product
Switch actuation:On end
Electrical connection:Screw clamp terminals
clamping capacity:1 x 0.34...2 x 1.5 mm²
Maximum force for tripping:3.4 N
Minimum release force:1.1 N
Maximum pre-travel:0.4 mm
Minimum over travel:5.5 mm
Maximum movement differential:0.05 mm
Tripping point:21.8 mm
Maximum actuation speed:0.5 m/s
Repeat accuracy:0.1 mm on the tripping points with 1 million operating cycles
Na lageru: 89 kom
Jedinica mere: kom
->
