  • MAA3300B20 OTL300-3B plava 3xAl/Cu 95-300mm2/6x1x40 1000V Univerzalna distributivna stezaljka

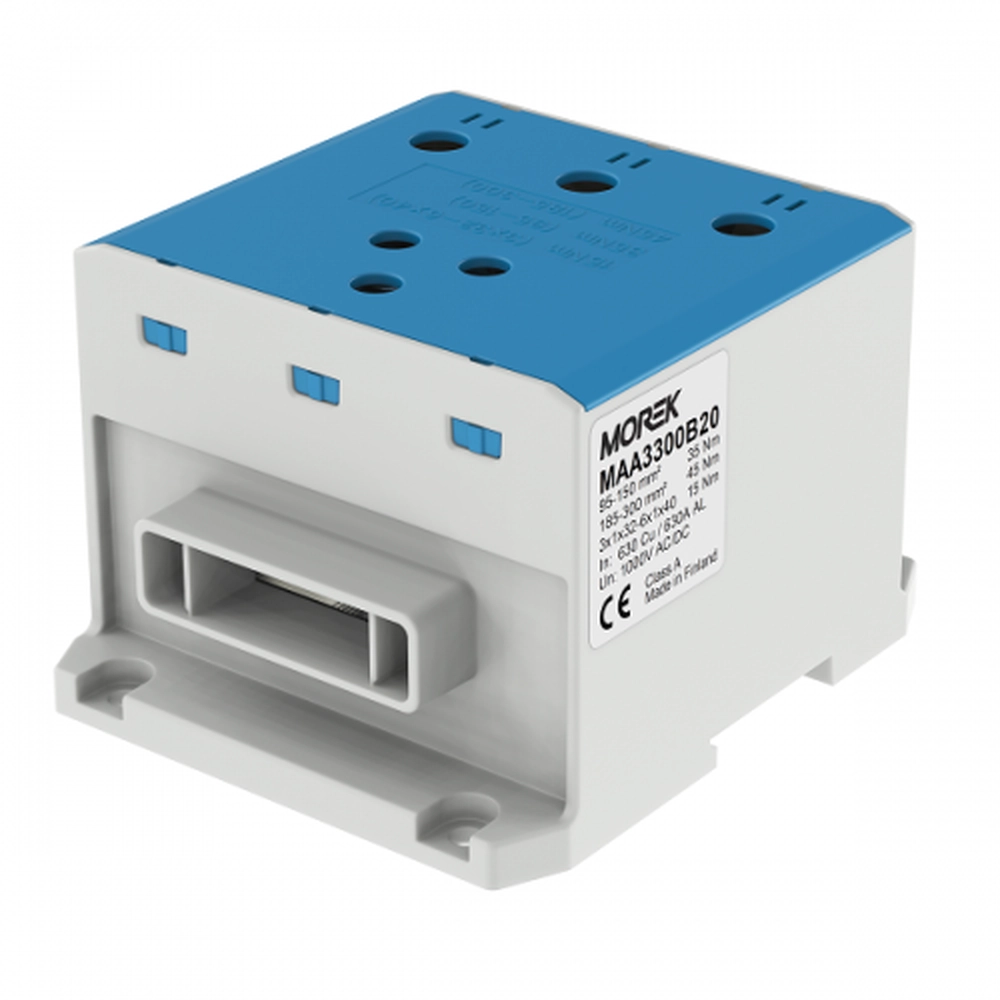

    MAA3300B20 MAA3300B20 OTL300-3B plava 3xAl/Cu 95-300mm2/6x1x40 1000V Univerzalna distributivna  stezaljka  The OTL universal terminal blocks for flexible busbars are designed for connecting copper (uncoated or tinned) flexible busbars and copper or aluminum conductors up to 300 mm² cross-section and flexible busbar dimensions up to 6x1x40 mm. These terminals retain all the advantages of the OTL universal terminal blocks, including a rated voltage of 1000/1500 V, plastic with a flammability rating of V-0 according to UL94, class A requirements.

Stezaljka za spajanje krute ili fleksibilne bakarne sabirnice i više provodnika Al ili Cu 95-300 mm2

U slučaju da su zalihe rasprodate Isporuka 3-4 nedelje. Proizvođač

    Cena sa PDV-om: RSD 10.884,00

    ✅ Na lageru: 3 kom
    📦 Jedinica mere: kom
    🔢 Minimalna količina: 1
    🛡️ Garancija: 5 godina
    📥 Preuzmi PDF
      Šifra proizvoda: MAA3300B20
      Naziv: MAA3300B20 OTL300-3B plava 3xAl/Cu 95-300mm2/6x1x40 1000V Univerzalna distributivna stezaljka
      Product code:MAA3300B20
      EAN:4744397031594
      ETIM Class:EC000897
      Product series:Universal terminals OTL
      CN8 code:85369010
      Unit:pcs
      Package size:1
      Net weight:0.94 kg
      Net length:0.12 m
      Net width:0.101 m
      Net depth:0.078 m
      Connectable conductor cross section fine-strand without cable end sleeve:95 - 300 mm²
      Connectable conductor cross section fine-strand with cable end sleeve:95 - 300 mm²
      Connectable conductor cross section solid-core:Unknown
      Connectable conductor cross section multi-wired:95 - 300 mm²
      Rated current In:630 A
      Rated voltage:1500 V
      Type of electrical connection 1:Screw connection
      Type of electrical connection 2:Not applicable
      Number of levels:1
      Number of clamp positions per level:4
      Mounting method:DIN rail (top hat rail) 35 mm
      Material insulation body:Thermoplastic
      Operating temperature:-25 - 80 °C
      The OTL universal terminal blocks for flexible busbars are designed for connecting copper (uncoated or tinned) flexible busbars and copper or aluminum conductors up to 300 mm² cross-section and flexible busbar dimensions up to 6x1x40 mm. These terminals retain all the advantages of the OTL universal terminal blocks, including a rated voltage of 1000/1500 V, plastic with a flammability rating of V-0 according to UL94, class A requirements. Stezaljka za spajanje krute ili fleksibilne bakarne sabirnice i više provodnika Al ili Cu 95-300 mm2 U slučaju da su zalihe rasprodate Isporuka 3-4 nedelje.
      ✅ Na lageru: 3 kom
      📦 Jedinica mere: kom
      🔢 Minimalna količina: 1
      🛡️ Garancija: 5 godina
