Obuhvatne distributivne stezaljke MAE-E Morek
MAE-E busbar terminals are designed for attachment to Cu busbars with a thickness of 5 or 10 mm and allow the connection of Cu conductors up to a cross-section of 185 mm² depending on the individual types. The body and screw of the MAE-E terminals are made of steel class 11 and are galvanically galv
Stezaljke za fleksi bakar i bakarne sabirnice Morek
The terminals are designed for connecting flexible busbars up to 50 x 10 mm to rigid busbars up to 50 x 10 mm. Advantages • Quick and easy installation • Ideal for on-site modifications • Reliable and solid connection • The tightening torque value is indicated on the terminal
The terminals are de
Stezaljke i nosači MS sabirnica BB od 1,5-35 mm2 Morek
BB terminal blocks are the best solution for customers who need to make variable lengths of assemblies themselves. The terminal blocks can be divided according to needs and fixed in plastic holders. All types of BB terminal blocks are equipped with screws with thread brake, which allows easier and f
Stezaljke MPIN Morek
The MPIN terminal block is a solution to increase the number of connection points on the terminal block for connecting protective conductors. The MPIN terminal blocks are offered in two versions and allow the connection of 3x16 mm2 or 6x16 mm2 conductors. The electrical part of the terminal blocks a
Izolovane stezaljke za nulu i zemlju NPE Morek
Stezaljke za nulu i zemlju NPE (mostovi) mogu biti montirani na DIN šinu poprečno. Mehanizam nosača za DIN šinu je napravljen od visoko termički i mehanički otpornog, samogasivog materijala
Obuhvatne distributivne stezaljke MAE-H Morek
The MAE-H bimetallic busbar terminals are designed for attachment to Cu or Al busbars with a thickness of 5 mm or 10 mm and allow the attachment of copper or aluminum conductors up to a cross-section of 185 mm². The busbar terminals have a bimetallic plate inserted between the busbar and the connect
Stezaljke fleksi sabirnice i provodnika do 95 mm2 Morek
The OTL universal terminal blocks for flexible busbars are designed for connecting copper (uncoated or tinned) flexible busbars and copper or aluminum conductors up to 300 mm² cross-section and flexible busbar dimensions up to 6x1x40 mm. These terminals retain all the advantages of the OTL universa
Stezaljke fleksi sabirnice i provodnika do 300 mm2 Morek
The OTL universal terminal blocks for flexible busbars are designed for connecting copper (uncoated or tinned) flexible busbars and copper or aluminum conductors up to 300 mm² cross-section and flexible busbar dimensions up to 6x1x40 mm. These terminals retain all the advantages of the OTL universa

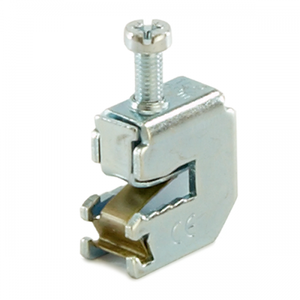

MAE0705E15 Univerzalna priključna stezaljka 400A 7005 16-70mm2 za odvod el. energije sa pljosnatih
Naziv: MAE0705E15 Univerzalna priključna stezaljka 400A 7005 16-70mm2 za odvod el. energije sa pljosnatih
Product code:MAE0705E15
EAN:4744397015006
ETIM Class:EC000001
Product series:Bow terminals MAE-E
CN8 code:85369001
Unit:pcs
Package size:15
Net weight:0.062 kg
Net length:0.0205 m
Net width:0.028 m
Net depth:0.039 m
Busbar thickness:5 - 5 mm
Busbar width:Not applicable
Suitable for:Flat rail
Width clamp:20.5 mm
Max. conductor cross section:70 mm²
Max. rated operation current Ie:400 A
Suitable for round conductor connection:Yes
Suitable for sector conductor connection:No
Suitable for strip conductor connection:No
MAE-E busbar terminals are designed for attachment to Cu busbars with a thickness of 5 or 10 mm and allow the connection of Cu conductors up to a cross-section of 185 mm² depending on the individual types. The body and screw of the MAE-E terminals are made of steel class 11 and are galvanically galvanized. The pressure spring is made of stainless steel. The tightening screws in the terminals have a hexagonal head and can be tightened using a hexagonal wrench or a cross-head screwdriver.
Stezaljke za sabirnicu MAE-E su namenjene za montažu na bakarnu
sabirnicu debljne od 5 i 10 mm, omogućavajući povezivanje
provodnika do 185 mm² u zavisnosti od različitih tipova.
Telo i zavrtanj su napravljeni od čelika (klasa 11) i pocinkovani.
Opruga je napravljena od nerđajućeg čelika.
Heksagonalna glava u stezaljkama (izuzev MAE 16E) omogućava
zatezanje zavrtnja koristeći inbus ključ sa prorezom ili Phillips-ov
odvijač
->
