Šifra proizvoda: MAD3016E21

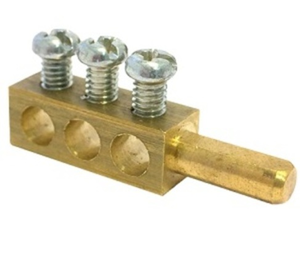

Naziv: MAD3016E21 PIN 3 dodatna mesingana klema 3x16, 80A
Product code:MAD3016E21
EAN:4744397018533
ETIM Class:EC001284
Product series:RCCD terminals MPIN
CN8 code:85369010
Unit:pcs
Package size:50
Net weight:0.01 kg
Net length:0.035 m
Net width:0.008 m
Net depth:0.016 m
Drill hole distance centrically:Not applicable
Explosion-tested version 'Ex e':No
Connectable conductor cross section fine-strand without cable end sleeve:1.5 - 16 mm²
Connectable conductor cross section fine-strand with cable end sleeve:1.5 - 10 mm²
Connectable conductor cross section solid-core:1.5 - 16 mm²
Connectable conductor cross section multi-wired:1.5 - 16 mm²
Rated current In:63 A
Rated voltage:690 V
Type of electrical connection 1:Screw connection
Type of electrical connection 2:Plug-in connection
Number of poles:1
Number of clamp positions per pole:3
Mounting method:Direct mounting
Material insulation body:None
Operating temperature:Unknow
The MPIN terminal block is a solution to increase the number of connection points on the terminal block for connecting protective conductors. The MPIN terminal blocks are offered in two versions and allow the connection of 3x16 mm2 or 6x16 mm2 conductors. The electrical part of the terminal blocks and adapters is made of brass, the connecting parts are made of galvanically galvanized steel. The connection adapters allow the connection of a conductor with a larger cross-section to the BB 111, BB147 (MAD1235E21) terminal blocks and BB142-10 (MAD2235E21) terminal blocks.
Stezaljke MPIN su rešenje za povećanje broja
izlaznih priključnih mesta RCCB neutralnih
stezaljki. Provodni deo je napravljen od
mesinga, a priključni delovi od pocinkovanog čelika.
✅ Na lageru:
546
🛡️ Garancija:
5 godina
->
