Šifra proizvoda: EFD200GR

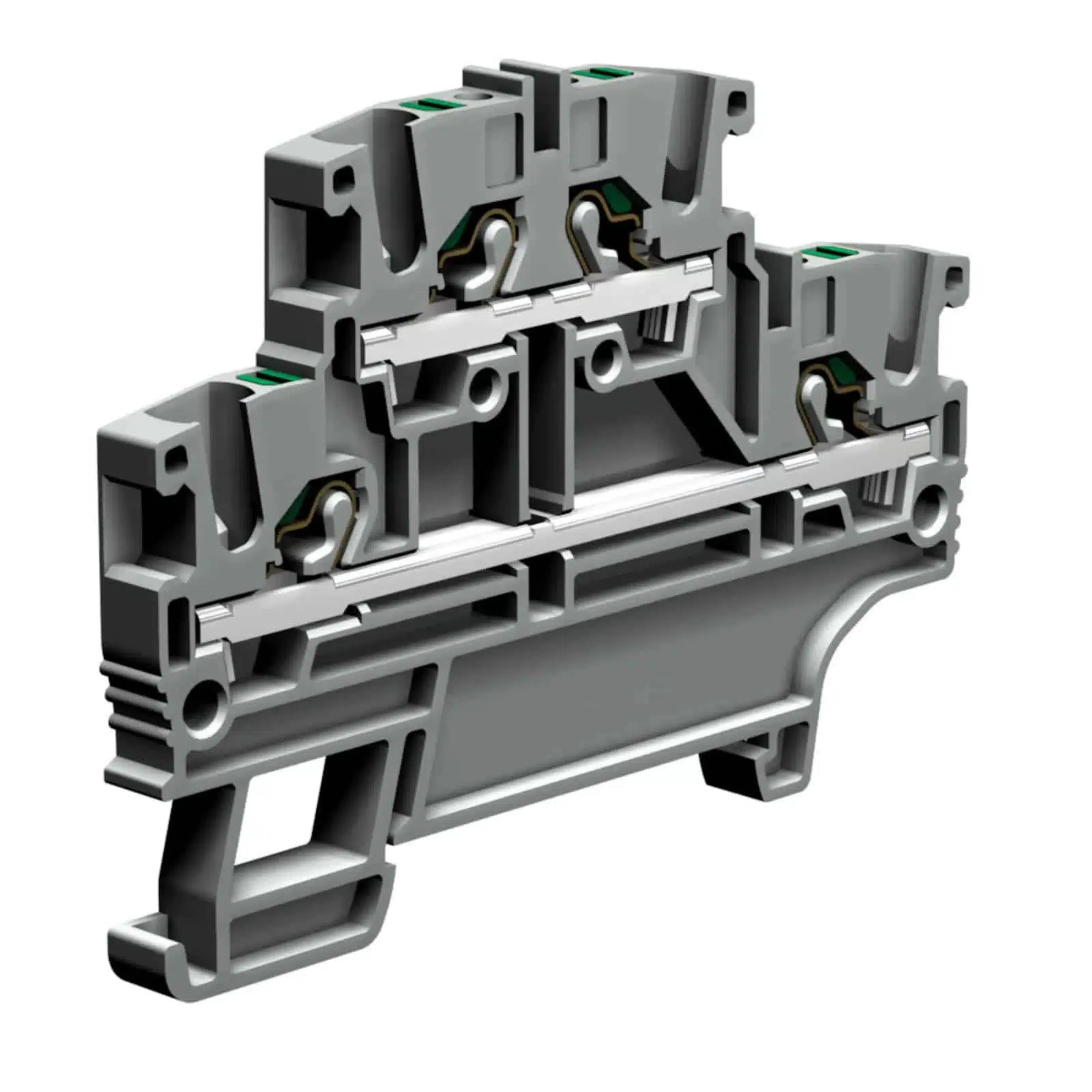

Naziv: EFD200GR EFD.2/GR brza ubodna dvospratna stezaljka 2,5 mm²
Series:EFD
Code:EFD200GR
Type:EFD.2/GR
HS code:85369010
Colour:Grey
Function/Type:2 levels feed-through
Rated cross-section:2.5 mm²
Flexible wire:0.2-4 mm²
Rigid wire:0.2-4 mm²
Wire with ferrule - ferrule type:2.5 mm² – WP25/19
Maximum voltage AC/DC:800 V
Maximum current (rated cross-section):22 A
Caliber:A3
Maximum voltage AC/DC:600 V (UG D) – 300 V (UG B
Maximum current (rated cross-section):20 A
Section (min-max):24-12 (AWG)
Maximum voltage AC/DC:500 V
Maximum current (rated cross-section):18 A
Service temperature Min/Max:-40 °C / +110 °C
Rated impulse withstand voltage / pollution degree:6 kV / 3
Insulation stripping length:9 mm
Additional information
NOTES
For more information, download the PDF catalog
EFC Series The EFC terminal block line (Easy Fast Connection) with Push-in connection technology guarantees fast, reliable, and efficient wiring of any type of cable.
REDUCED INSTALLATION TIME, IMPROVED PERFORMANCE. Push-in technology allows wiring of rigid and flexible cables, with or without ferrules. The cable is inserted directly into the terminal block, and no tools are required to open the clamping spring—simply push in the conductor to ensure a secure and long-lasting electrical connection.
DIRECT PLUG-IN CONNECTION. The connection is so simple, precise, and accurate that panel wiring can be carried out with one hand, without affecting performance and while improving work ergonomics. To connect flexible cables without ferrules, simply press the colored button to open the clamping spring and insert the properly stripped cable.
CONDUCTOR RELEASE BUTTONS: SPEED, SIMPLICITY, AND SAFETY. To remove the conductor from the terminal block, simply press the release button with any tool to open the spring. Marked with different colors, the release buttons prevent operator errors and accidental contact with potentially live parts, even in installations with a high density of connections.
